Advanced Driver Assistance Systems - TEXA


TEXA ADAS RCCS3 - Product overview

Why TEXA for ADAS?

TEXA is a global leader in the design, development, and production of multi-brand diagnostic tools. These include, but are not limited to, ADAS: Radar and Camera Calibration Kit, Vehicle Communication Interfaces, and TEXA IDC5 Diagnostic Software. IDC5 provides access to functions such as reading parameters and errors, as well as activation of components, settings, and both both static and dynamic ADAS calibrations.

TEXA offers unbeatable coverage combined with the best return on investment in diagnostics. TEXA tools are made with the utmost quality materials and attention to detail.

Complete Multi-Brand Offering

TEXA’s solutions match

OEM specifications to

provide accurate calibrations

and unbeatable coverage.

SUPERCARS

ALFA ROMEO
ASTON MARTIN
BENTLEY
BUGATTI
FERRARI
FORD
LAMBORGHINI
MASERATI
MCLAREN
MORGAN
PAGANI
PORSCHE
ROLLS ROYCE

PASSENGER CARS

ABARTH
ACURA
ALFA ROMEO
AUDI
BMW
BUICK
CADILLAC
CHEVROLET
CHRYSLER
DODGE
FIAT
FORD
GENESIS
GMC
HONDA
HUMMER

HYUNDAI
INFINITI
JAGUAR
JEEP
KIA
LAND ROVER
LEXUS
LINCOLN
LOTUS
MAZDA
MERCEDES-BENZ
MERCURY FORD
MINI
MITSUBISHI
NISSAN
PLYMOUTH
SAAB
SATURN

SCION
SMART
SUBARU
SUZUKI
TOYOTA
VOLKSWAGEN
VOLVO

LIGHT COMMERCIAL VEHICLES

CHEVROLET
DODGE
FORD
FREIGHTLINER
GMC
MERCEDES-BENZ
NISSAN

360° Coverage of ADAS

360 Coverage

Advanced Driver Assistance Systems are designed to guarantee safety and comfort while driving. They are becoming standard in many modern vehicles, and it is critical to ensure that ADAS are calibrated and fully functional after repairs have been completed. As ADAS become more complex, the number of types of repairs that require calibration continue to rise.

TEXA offers a multi-brand solution that covers a wide variety of cars and trucks. TEXA’s solutions allow performing static and dynamic calibration and assure the correct reset of the ADAS, guaranteeing safety for the driver and the technician.

RCCS 3
(Radar and Camera Calibration System 3)

Two versions delivering a world class solution for ADAS. Both are versatile, durable, and assembled with exceptional components.

RCCS 3 with Monitor
RCCS 3 with Panel

RCCS 3 with Monitor

The digital innovation for calibrating ADAS

RCCS 3 with Monitor is TEXA’s solution for setting radars, LIDARs, cameras and sensors through the digital representation of the panels.

In fact, it is equipped with a 75-inch HD screen with 4K resolution. Which always offers an optimal display and meets the 1:1 proportion ratio in line with the specifications of every manufacturer. It is important to highlight that it does not deform nor resize the images.This allows workshops to operate safely, without risk of altering the vehicle’s behavior on the road.

RCCS 3 with Monitor communicates with the IDC5 software and guides the mechanic, step-by-step, to quickly and accurately  identify the vehicle. The panel is selected and set in the monitor, with no possibility of error.Thanks to continuous software updates that each time offer new vehicles and eventually new panels, and to the essential help sheets edited per make and model, users are sure to complete any operation with maximum precision and to the highest standards, relying on TEXA's extraordinary coverage.

Additionally, the digitalisation of the panels allows considerable space savings in the workshop that would otherwise be occupied by multiple physical panels.

1:1 PROPORTION RATIO

in line with the specifications
of every manufacturer

ROBUST

but easy
to move and adjust

EASY TO USE

thanks to the digitalisation
of the panels

Precise, simple and quick adjustments and movements

RCCS 3 with Monitor is fitted with laser levels, and laser distance measuring, as well as over-sized pivoting wheels. The position of the screen is adjustable in four ways, vertically, horizontally, and two way tilt.

This  technology allows positioning RCCS 3 and aligning it correctly with respect to the vehicle and to the ground easily, with absolute precision and in complete safety.

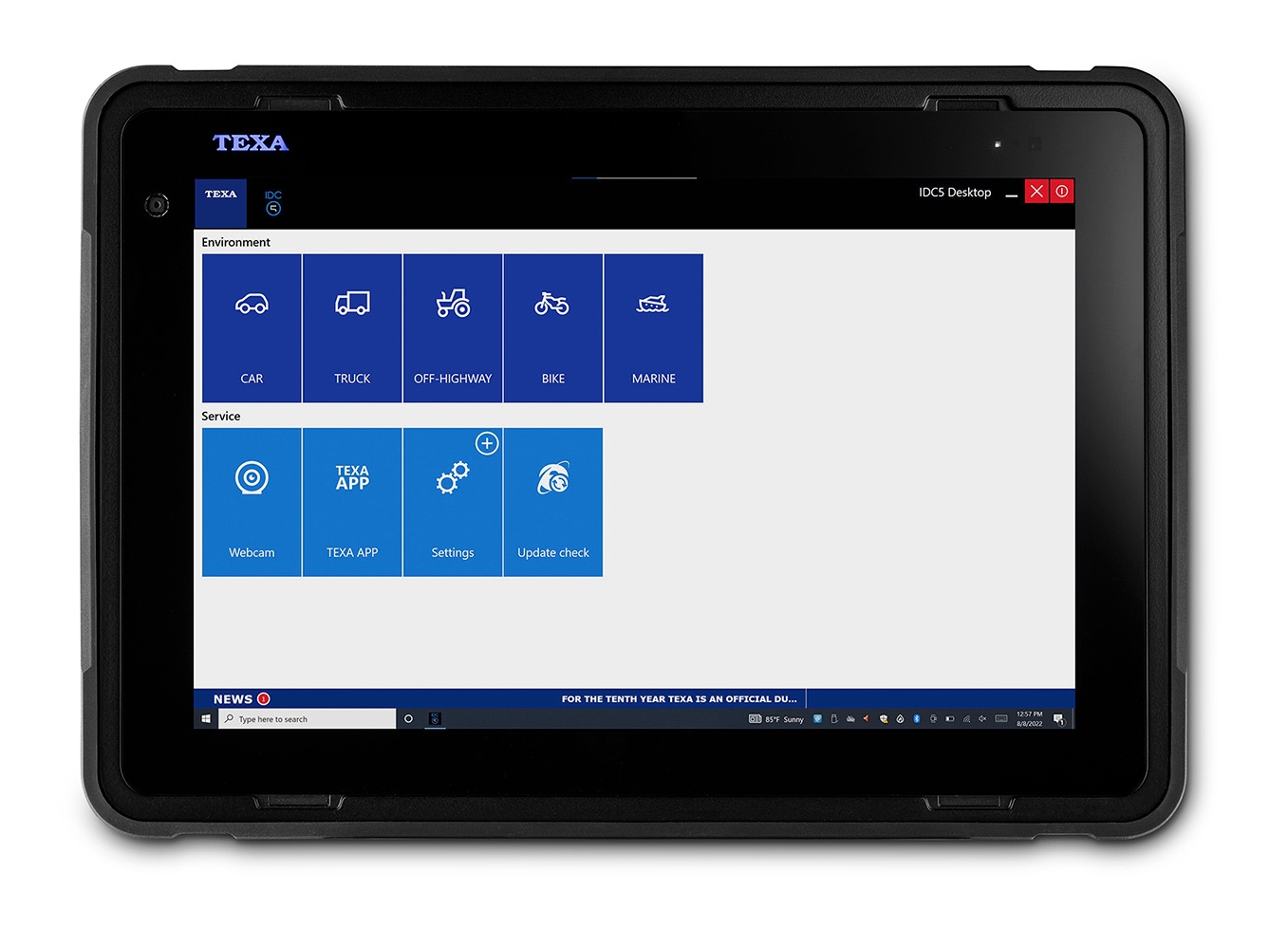

AXONE NEMO 2

An award winning, military-grade tablet that is engineered flawlessly to work in extreme conditions. Equipped with a magnesium chassis and touch screen made with gorilla glass, this rugged and durable tablet is the perfect choice for those working on all types of vehicles.

The AXONE NEMO 2 paired with one of TEXA's Vehicle Communication Interfaces will allow technitions to use TEXA's IDC5 Diagnostic Software. IDC5 provides access to functions such as reading parameters and errors, as well as activation of components, settings, and both static and dymanmic ADAS calibrations. TEXA offers the TXT MultHub that is capable of scanning nearly any type of vehicle, or the Navigator Nano S which focuses on passenger cars and super cars.

Integrated instructions and reporting of results are provided using the AXONE NEMO 2 tablet with IDC5 Diagnostic Software. The IDC5 software provides specific diagnostic help sections for each make/model, with the instructions (such as panel height, distance from the vehicle, alignment, etc.) for the correct positioning of the unit. Additionally, IDC5 guides technicians step by step through the each procedure. It also provides a printable report that can be shared with customers detailing the operations that were completed and results of the calibration.

ADAS systems

Additional Targets and Accessories

The RCCS 3 is supported by a full range of targets and accessories that assist with calibration and validation of ADAS functionality.

Blind spot radar reflector

It is an essential device for calibrating the ultrasonic radars installed in vehicles of the makes HYUNDAI, HONDA, KIA, LEXUS, MAZDA, MITSUBISHI, SUBARU, TOYOTA. It is made up by a metal reflector cone, a laser and a goniometer jig to help the technician position the pyramid cone correctly. It can be used both for the front radars and for the side and rear radars.

IR Calibration Target and Night Vision System

They are two very useful accessories as they allow calibrating the infrared camera, in a short time and with maximum precision, for the Mercedes and VW Group vehicles in which it is installed. The night vision system is an essential feature from the point of view of road safety, which helps drivers detect in advance people or animals in the dark. Positioned in front of the vehicle, the IR Calibration Target and Night Vision System simulate the presence of a warm body.

ADAS systems

ADAS systems

ACS (All-Around Calibration System)

ACS allows calibrating 360° cameras and Dopplers for VW Group (AUDI, VOLKSWAGEN, LAMBORGHINI) vehicles. It is made up by an aluminum structure that has two horizontal panels and two vertical magnetic boards. The base has three housings for three distance measurers dedicated to verifying the correct alignment with respect to the vehicle.

Doppler Simulator

This accessory also is used to calibrate blind spot radar. It is an active simulator that responds
to the frequency generated by the rear radar in MAZDA and VW Group vehicles.

Not Sure?

Not sure which system is right for you?

If you are unsure of how to integrate an TEXA ADAS Calibration system into your business, we invite you to contact us online or by phone to learn more.

We speak fluent TEXA ADAS!
